Stereolithography (SLA)
Precision 3D Printing for Detailed Resin Parts
Stereolithography (SLA) uses advanced 3D printing technology to produce high-resolution, detailed resin parts, making it ideal for applications that require fine features, smooth surfaces, and high accuracy.
How Stereolithography works
Stereolithography (SLA) is a 3D printing process that uses a laser to cure and solidify layers of photopolymer resin, building parts layer by layer. The process starts with a digital 3D model, which is sliced into thin layers. A laser selectively cures the resin in a vat, following the shape of each layer in the model. After one layer is cured, the build platform lowers, and a new layer of liquid resin is spread across the surface. This process repeats until the entire part is complete. The result is a highly detailed and precise part with smooth surfaces, ideal for intricate designs and prototypes.
Benefits of SLA
High Precision:
SLA excels at producing parts with intricate details and tight tolerances, making it ideal for applications requiring extreme accuracy.
Smooth Surface Finish:
SLA naturally creates parts with exceptionally smooth surfaces, reducing the need for extensive post-processing and ideal for cosmetic prototypes or parts needing minimal finishing.
Fine Channels and Features:
SLA is capable of producing very fine channels and delicate features, perfect for designs with complex internal geometries or small, detailed parts.
Cost-Effective for Large Quantities:
SLA becomes increasingly cost-effective when producing larger quantities of parts, especially for small to medium-sized components, due to its efficient use of materials and quick turnaround times.
Design Guidelines for Stereolithography
- Max size: 780 x 780 x530 mm
- Tolerance: ±0.3mm (Within 100mm), ±0.4% (Above 100mm)
- Wall Thickness: Minimum wall thickness should be at least 0.8 mm to ensure part strength and durability.

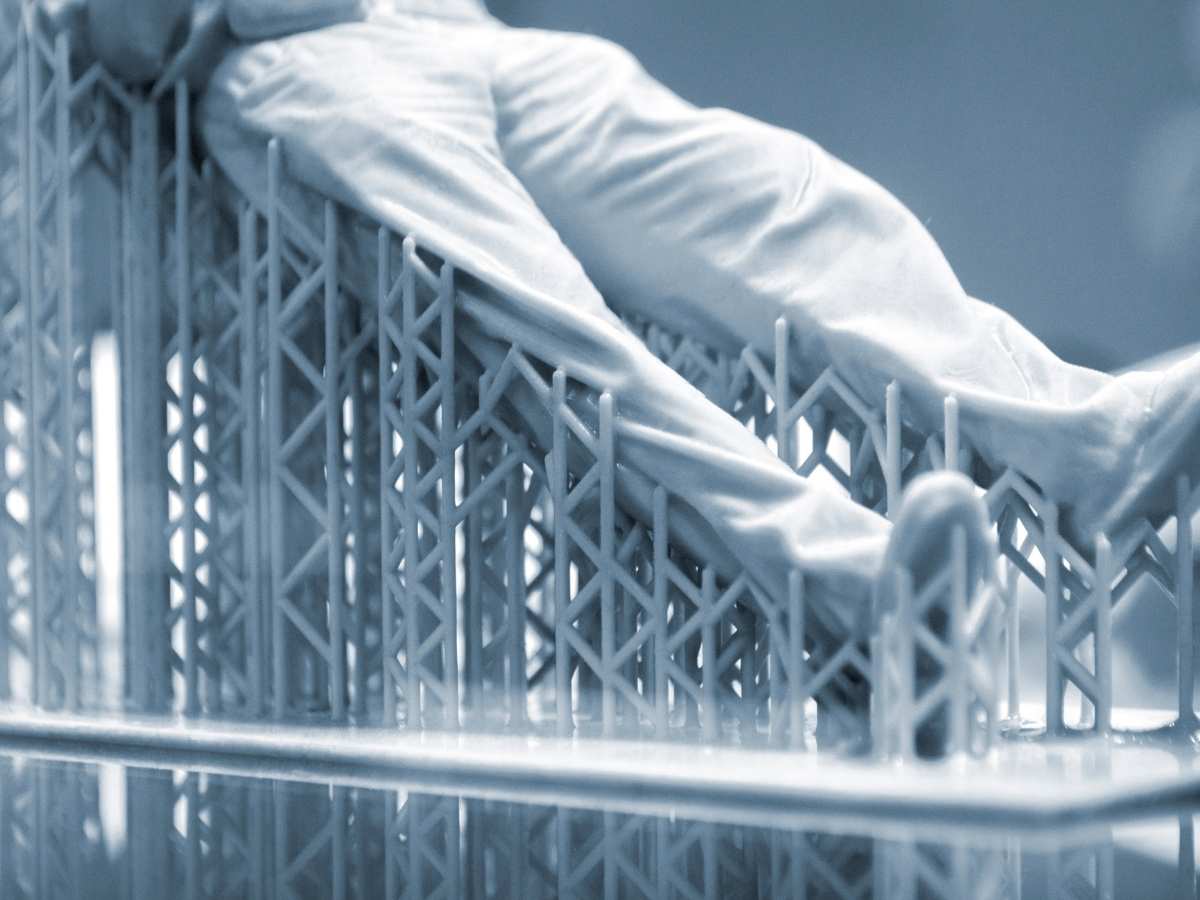

- Supports: SLA parts often require support structures for overhangs and complex geometries. These supports are removed during post-processing.
- Detail Resolution: SLA can achieve very high resolution, with layer heights as small as 25 microns. Ensure your design takes advantage of this precision for fine details.
- Orientation: The orientation of the part on the build platform can affect surface finish and strength. Consider how different orientations might impact the final product.
- Hollow Parts: Hollowing out parts can reduce material usage and weight, but make sure to include escape holes for the uncured resin.
High-end materials and properties
The foundation of quality 3D printing starts with the use of high-quality materials. Thanks to our range of printing materials, each with unique properties and applications, you’re sure to find the right material for your project. From durable thermoplastics for industrial parts to super strong metals, our materials are carefully selected to ensure optimal performance and functionality in every print.
-
Black Resin
Black Resin, used in Stereolithography (SLA) 3D printing, offers exceptional dimensional stability and smooth surface finishes. It is well-suited for creating high-detail prototypes and functional parts, particularly in high humidity environments. -
White Resin
White Resin is a cost-effective SLA material that provides a matte white finish, excellent durability, and high strength. It’s ideal for high-volume production and detailed components, particularly in industrial applications. -
Transparant Resin
Transparent Resin offers high precision and dimensional stability for clear 3D printed parts. Ideal for applications needing transparency.
How to order SLA?
If you are confident that your part is suitable for Stereolithography (SLA), you can order it directly through our online order tool.
If you are unsure, we start by assessing your business case to determine the feasibility and benefits of adopting SLA for your projects. Our experts analyze your parts, focusing on key criteria such as size, material, complexity, and cost. Once suitable parts are identified, we move to the file selection phase, where we choose the optimal designs for SLA.
Next, we optimize your files to ensure they meet the specific requirements of the SLA process, refining features like wall thickness, support structures, and orientation. Our team uses advanced software and expertise to enhance each design, ensuring maximum efficiency and quality.
-
